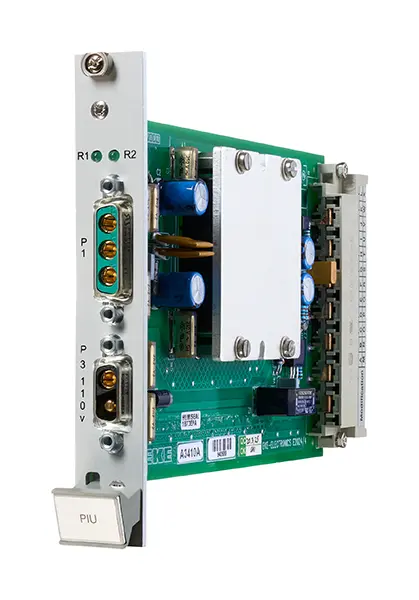

Power Input Unit
The EKE-Trainnet® Power Input Unit (PIU) is used to pass train battery voltage to the EKE-Trainnet® Power Supply Unit for VME (PSV) module, thus powering the entire EKE-Trainnet® system.
COMPLIANCE:
EN 50155, EN 45545
Technical Specification for Power Input Unit
Key Features
Range of Input Voltages Available
The EKE-Trainnet® PIU input voltages can be:
- 24 V DC (PIU2056)
- 24 to 36 V DC (PIU4233)
- 36 to 52 V DC (PIU2510)
- 48 to 110 V DC (PIU4234)
- 72 V DC (PIU2280)
- 110 V DC (PIU2219)
An EKE-Trainnet® PSV with a similar input voltage must be selected.
Options
Isolated DC Converter Output
An isolated DC/ DC converter may be installed as an option to provide power to any external equipment. If required, the output voltage may be switched off during the system reset in order to force hard-resets of external equipment. Currently available PIU modules with DC Converter Output are listed in the table below. We can also provide you with other versions upon request.
